Extending Coverage: Distributed Antenna Systems

With Super Bowl XLVI around the corner, as a wireless engineer I always wait with bated for the performance of the network. How many calls did we drop? What was the congestion and customer satisfaction? How did we fare against other operators? Well these and more questions will always be on my mind as I have worked across different networks in the US. I still remember the days when COWs (cell on wheels) were the only option, but DAS (Distributed Antenna System) has come to the rescue. Businesses are finding a growing demand to provide a wide variety of wireless technologies in the indoor space today with coverage in stadiums and Casinos leading the need. Wireless cellular customers depend on the mobility of their devices wherever they go. There is a necessity for DAS systems with the breadth of design requirements that allow it to carry a wide range of technologies and to do it well. Both the venue owners and wireless carriers wish to provide their customers and occupants with a satisfying wireless user experience.

In addition, regulatory movement dictates that public-safety communication service is a gating item to building occupancy covering the indoor area, including both public and back-of-house areas. The DAS can provide a broadcast mechanism for reaching public-safety personnel throughout a building, and can be done with an economy of scale when combined with commercial cellular services. Public safety can be broadcast across a range of frequencies that the DAS may provide. Building owners often demand Wi-Fi service as well, from small offices to large venues such as airports and convention centers.



Source: DAS Forum

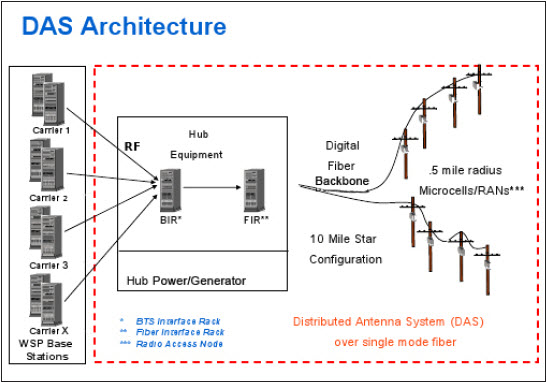

DAS design should consider the perspective of integrating multiple wireless services that meet performance standards demanded by the wireless provider and building owner. The design must also consider the economies of scale of sharing DAS resources among carriers. DAS vendors have advanced their equipment to meet a wider range of frequency bands and higher power outputs to address these high standards. Key performance indicators for DAS design include frequency bands, protocols, sectorization, coverage and interference, among other parameters.

DAS Sharing Mechanisms
Sharing DAS resources among multiple wireless service providers are an important facet of designing and operating a neutral-host DAS. Sharing DAS resources can occur on various levels, from completely independent use of separate DAS equipment for each MNOS to fully integrated usage on the same equipment. Depending on the carrier, the preference can be for either dedicated or shared equipment. A DAS can be designed to accommodate either architecture or a combination of both. For the shared neutral-host architecture, the challenge is how to design it to meet quality of service and growth needs of each participant while sharing resources. If a first MNOS commissions its services with a DAS, the continued level of performance must be addressed when an anticipated second or third MNO is added.

A shared DAS is that the designer should designate RF single points of contact at the host and at each tenant carrier. This allows the host to measure DAS performance quarterly. Each SPOC should have the authority to approve DAS modifications that impact multiple carriers and

request that tenant SPOCs have the authority to retune first- and second-tier macro neighbors.

Sharing options

Fully independent of DAS Layers:
Advantages: Full flexibility to design each system to optimal configuration, easier to debug, ownership is well defined.
Disadvantages: Cannot take advantage of common synergies, multiplied number of cable and antennas, highest cost, integrator must be careful about inter-system interference.

Shared coax/antenna network:
Advantages: Reduce cable install costs by running fewer cables, fewer antennas in ceiling.
Disadvantages: Differing topologies may limit common cabling paths.

Mix of dedicated and neutral-host remote unit electronics:
Advantages: Allows both neutral-host capability and MNOS-dedicated equipment.
Disadvantages: Higher cost than fully integrated neutral-host DAS.

Multiple MNOSs fully integrated onto single DAS layer:
Advantages: Most cost savings, least amount of equipment.
Disadvantages: Power sharing of RF transmitting hardware may be unfair or changing, interference from unintended signal mixing.

DAS equipment today is better able to handle multi-wireless service provider/multi-band/multi-technology. Fortunately today’s top-tier DAS equipment is built by design to be able to handle a wide range of frequency bands and technologies, allowing for broader use by MNOSs with modern 3G and 4G wideband channels. Modern DAS systems may be built in layers or with modules that allow multiple MNOSs and their channels/carriers to ride on them. Equipment often has built-in band filtering and power management to allow a diversity of signals to coexist on a DAS without any hindrance to performance. They are designed to better avoid interference issues from multiple bands transmitted that would often plague older-generation DAS systems.



Converged cellular, PCS, public safety & Wi-Fi
An interesting aspect of ownership is the integration of Wi-Fi and cellular services within a building. Large venues such as airports need wide-ranging Wi-Fi coverage (802.11a/b/g/n) and the DAS integrator may opt to design this functionality into the overall system design. Many are now questioning whether the Wi-Fi network should be integrated into the DAS infrastructure at some level or should it be installed on a discrete basis. If Wi-Fi service is desired to be integrated, then the question becomes who will take ownership of Wi-Fi issues. While 2.4 GHz signals could be supported to meet the link budget, at 5 GHz (802.11a), amplification will need to occur either at the antenna element or access point. As WLANs are increasingly used for mission and life-critical applications, additional hardware allows for multiple points of failure. Support of MIMO is highly questionable for 802.11n. In potential support of MIMO, multiple coaxial runs are needed, which makes costs much higher than a discrete DAS design and a discrete WLAN design. The WLAN manufacturer will not provide warranty support for access points integrated with the DAS. Real Time Location-based Services will not operate as intended.

Here are some Wi-Fi/DAS integration options:

Fully independent of DAS:
Advantages: Wi-Fi operates as intended by the WLAN provider. WLAN manufacturer provides warranty support. All capabilities of the WLAN (i.e., MIMO, 802.11a, Real Time Location-based Services) operate as intended.
Disadvantages: None.

Uses only DAS cable paths:
Advantages: Reduce cable install costs by running DAS and Wi-Fi cabling at same time.
Disadvantages: Differing topologies may limit common cabling paths.

Integrated with DAS coax/cable:
Advantages: Reduces cabling and antennas.
Disadvantages: DAS antenna topology may not support Wi-Fi MIMO scheme.

Fully integrated with DAS:
Advantages: Access points could be co-located in the wiring closet and could be combined onto a common coaxial infrastructure.
Disadvantages: Amplification will need to occur either at the antenna element or access point. Additional hardware allows for multiple points of failure and added costs

Long-term system performance
Although no one can protect a DAS from eventual obsolescence, there are some steps to provide flexibility for meeting new traffic and frequency requirements.

Build the DAS with the knowledge of the MNOS’s roadmap for future growth. The DAS designer should understand the future needs of the MNOS. Limiting the design with only today’s traffic in mind is risky to system performance.
Provide a flexible architecture that permits easy addition of more channels and frequencies on existing or expanded DAS equipment. Understand potential MNOS providers and customer demands within the building facility.

Where feasible, it is a good idea to use call generators/probes to provide independent view of RF key performance indicators that can assess accessibility and retainability of the throughput signal, etc. This can also aid in providing early warning of any RF degradation and in some cases, could help distinguish DAS from RAN problems, as well as troubleshoot in conjunction with head-end management information base data.

In order to mitigate uplink noise rise for high-density, peak-traffic scenarios, it is a good idea to ensure RAN sectors feeding the DAS are set to high-capacity parameters; invoke traffic throttling on these RAN sectors, keep the soft handover from the DAS to the macro-cellular network outside the venue and whenever possible, and allow automatic authentication of subscriber devices onto the Wi-Fi network for offload.

Understanding the MNO’s frequency/traffic demand projection plan
if the MNO can share its roadmap with a DAS provider, it will help ensure adequate DAS capacity over time. Traffic demand on wireless networks is really ratcheting up with equipment like Apple’s iPad and iPhone, Google’s Android operating system, and other smartphones, tablets and emerging devices. Further, the majority of wireless traffic occurs indoors. How does a DAS provider account for these changes? This is not an easy task, but here are some items to consider:

Expanded or shifted frequency band licensing and use: The MNOS may be acquiring new spectrum or planning to use spectrum it owns but has in reserve. The MNOSs should share that information with the DAS designer.

Available RF traffic channels: As macro outdoor wireless traffic increases, additional channels are often commissioned per sector to meet demands. These may be available for indoor use too.

MNOS traffic growth predictions: The MNOS looks at subscriber and usage data for indoor venues and projects traffic usage and number of channels required to meet subscriber traffic over some foreseeable period of time. What will traffic look like on the DAS three years from now?

The DAS designer can use all of that information to determine how to best design the DAS. The following table lists typical traffic demands that a carrier may expect a DAS to carry.

Convention center:

  • Peak attendees: 50,000 people
  • Three year voice erlangs: 450
  • Three year data erlangs: 700
  • Required number of sector carriers: 47
  • Required number of DAS zones/sectors: 10

Coliseum:

  • Peak attendees: 15,000 people
  • Three year voice erlangs: 150
  • Three year data erlangs: 200
  • Required number of sector carriers: 14

Casino:

  • Peak attendees: 10,000 people
  • Three year voice erlangs: 100
  • Three year data erlangs: 175
  • Required number of sector carriers: 12
  • Required number of DAS zones/sectors: 3

Hotel or other area:

  • Peak attendees: 5,000 people
  • Three year voice erlangs: 50
  • Three year data erlangs: 80
  • Required number of sector carriers: 6
  • Required number of DAS zones/sectors: 2



One consideration in the design of a DAS that will handle this capacity is to build a DAS that will accommodate the number of sectors the MNOS desires to broadcast on it. This is done by dividing the venue’s coverage area into DAS zones, allowing each MNOS sector to cover one of more zones with a MNOS sector. The DAS can provide capacity for both low- and high-use MNOSs alike. This allows the DAS to accommodate the worst-case number of sectors, meeting the traffic demands of each MNOS.

Flexible DAS equipment
DAS equipment manufacturers have designed increased bandwidth into their products. The DAS designer can use these products to provide a flexible design. This can be done either by building in the capability up front with multi-band equipment, or by providing a core architecture that can be easily expanded with modular electronic components.

Provision for a flexible architecture should also include allowing for MIMO transmission. Although there is debate over how much MIMO helps with data speeds in an in-building venue, there is at present enough demand by certain carriers where a DAS integrator must seriously consider provisioning for it. It may be cheaper to provision up front, such as pulling a higher cable-quantity bundle and installing two or more antennas versus one at each antenna node location. DAS OEMs have several schemes for implementing MIMO. From an aesthetic viewpoint, there may be preference to have two times the number of standard antennas to support MIMO versus using a substantially lower number of cross-polarized antennas, which may be bulkier.

Careful planning, flexible architecture and DAS partitioning should all be factored together when formulating a strategy for growth. This path should also be designed to protect the interests of incumbent DAS users while providing for future needs.

If the DAS is to be neutral host or if any carrier is likely to want MIMO antenna configuration, consider installing cabling up front to provide an infrastructure that will make expansion less costly. This includes coaxial cable, fiber, composite cable (including copper wiring for powering remote devices), and Cat 5. Labor for cable pulling is expensive, so it is much cheaper overall to install a bigger bundle of cable once than to go back several times to install more cable. And while the installers are in the ceiling, it is often easier to go ahead and install for a MIMO antenna configuration up front if there is a decent chance that MIMO will be requested later. This usually means installing two antennas per antenna-node location.

Source: Ericsson

Indoor DAS

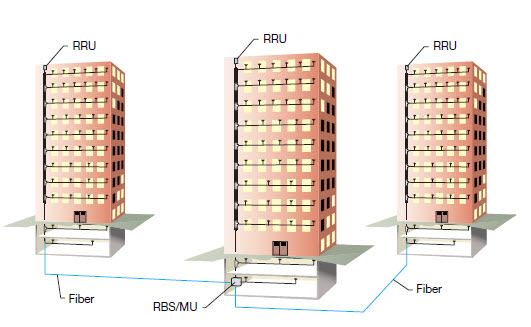

Indoor DAS networks offload traffic from the macro site, which allows the macro network to operate more efficiently. Indoor solutions can be hidden and concealed in a variety of ways that are often oblivious to the end user, who only knows that their cellphone connections are being made. High-traffic ar­eas like casinos, airports, malls and conven­tion centers often use DAS solutions to pen­etrate these concrete-and-steel buildings. Engineers design the indoor DAS signal so that the device finds the DAS network first, Young explained, so the outside traffic on the macro site is not impacted by the higher traffic indoors.



Source: DAS Forum

Advantages of DAS Systems

The DAS gives operators a more effective solution to providing in-building coverage than small, distributed indoor base stations (pico Radio basestations). For instance, it provides trunking gains on the radio interface and transmission links—every radio channel is thus instantly available in every part of the building; this, in turn, increases spectrum efficiency and makes it possible to cater for local traffic peaks. The RBS needs only one transmission line to feed an entire building. This makes for a high degree of transmission trunking efficiency and decreases the amount of transmission overhead that is normally transmitted to each Radio Basestation. DAS solutions also make it is easy for operators to control and confine coverage within a building and to reduce interference to and from the macro network, which increases overall network capacity.

Traditionally, getting DAS sites through the zoning process has been easier than get­ting traditional towers sited, but that assess­ment is changing a bit, depending on who you ask. Zoning issues were one topic all carriers noted were more easily solved with DAS, which has become a more pressing issue as municipalities have increasingly made tradi­tional cell site deployments more difficult.
