Wireless today at a crossroads and has become a key enabler of future consumer products, with potential applications ranging from high bit-rate video conferencing and movie viewing to simple ‘house keeping’ tasks in domestic appliances. Radio systems have moved toward forming heterogeneous wireless networks (hetnets), collaborations of multiple radio access networks, which in some cases operate different radio access technologies, such as second- and third-generation cellular RATs, IEEE 802.x wireless standards, and so on. On the other hand, multimode reconfigurable user devices with the ability to choose among various supported RATs have become a reality, and devices and networks with dynamic spectrum access capabilities, allowing real-time sharing of spectrum resource usage among different systems, are a part of the radio eco-space today.
Every decade brings changes to the way wireless is delivered to the users, and this decade shall belong to the indoor coverage and related services for wireless. I call them service ‘enablers’, the means to deliver a positive experience to users. While the 4G standards battle rages on for LTE vs. WiMAX, only the ecosystem will decide which will the dominant technology for the next decade. Whichever technology wins, these enablers will be omnipresent to delivery these technologies. We are at a true convergence for wireless where telecom meets the smart grid, smart home, and where networks become a service. The aims of the Wireless Enablers work area are, to develop technologies to support interworking of networks and efficient and effective use of spectrum for inter-RAN communications. Enhanced operation of data delivery mechanisms (performance and mobility), reduced complexity in processing.
Femtocells
The great outdoors for cellular wireless has been conquered. RF has limitations for delivery of wireless indoors, and there is a limit to the number of sites that any operator can deploy, with zoning and other FCC/FAA restrictions in place. Though repeaters and DAS systems have been around for a while now, but their place in the world is relegated to where no Pico/Femto cell would be able to provide the capacity and coverage like inside tunnels or casinos etc. Pico cells have filled in the coverage holes for operators in a big way and have been around for a while, but that entails an OPEX for the operator (power/backhaul) and can only plug some indoor coverage holes for the operators. The big push would be for Femto cells, where operators have a big advantage of getting coverage without any OPEX. Both the 3GPP (LTE) as well as WiMAX Forum have published the Femto standards, and are aggressively pursuing its deployment.
By 2012, there will be 36 million shipments with an installed base of 70 million femtocell serving 150 million users.
Source: Pico Chip
LTE Femto Architecture
LTE HeNB – Release 8
Femto-cells or Home Node Bs have been a hot topic for quite some time since they offer benefits such as providing:
• Significant offload of traffic from regular base stations;
• Full coverage and high speed transmission at home;
• Better link quality; lower transmit power, higher performance;
• A single mobile device serving all purposes for the customer;
• Improved customer relations for the operator.
In 3GPP terms, LTE femto-cells are called Home Node B’s for HSPA and Home eNode B’s for LTE. With increasing LTE terminal penetration and fixed-mobile convergence, the expected demand for LTE Home eNodeBs is likely to provide attractive services and data rates in future home environments.
WiMAX Femto Architecture
WiMAX Forum Global Congress, Amsterdam – June 17th 2010 – The WiMAX Forum and the Femto Forum announced the publication of the first WiMAX™ femtocell standard allowing vendors to start developing standardized femtocells and associated network equipment based on the IEEE 802.16e radio interface and profiles. The WiMAX Forum aims to start certifying compatible products in early 2011 to guarantee efficient and effective interoperability between different vendors’ access points and core network equipment.
WiMAX femtocells cost-effectively enhance coverage and capacity inside buildings and in small outdoor areas as well as supporting advanced new services. The specifications incorporate a security framework that allows WiMAX networks to support a large number of access points via standard commercial IPSec based security gateways. This phase of specifications also contains simple Self Organizing Network (SON) capabilities to allow automatic configuration of large numbers of femtocells. Future revisions will further enhance the SON capabilities to standardize automatic interference management between femtocells and macro base stations.
Game changers
SoftBank Corp. has started offering femtocells for free in Japan as it ramps up its national service this year, a move that could spur other operators to adopt the same model for the small home base stations.
Not only are Softbank’s femtocells offered for free, but so is the ADSL connection, when customers sign up to a two-year contract. Another twist in Softbank’s strategy is that the access points are configured for open access, which means that any Softbank subscriber within range of a femtocell can use it. Most femto services today are offered on a closed access basis, which allows only registered users to use the access point.
SDR – Software Defined Radio
Software Defined Radio (SDR) is a radio technology implementation using software, which will become ubiquitous and a key enabling technology for reconfigurable, reprogrammable processing devices for Radio Access. SDR is the centerpiece in the development of multi-band, flexible and smart base stations that can costeffectively evolve as the technology advances. The classic definition of SDR is having arrays of general-purpose processors running virtually all functions in software.
SDR will help in efficient radio resource allocation for opportunistic communications, Support co-existence of devices and standards and multi-mode terminal to concurrently support multiple data delivery mechanisms with enhancements to standards to improve capability.

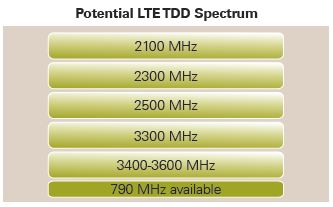

SDR platform can simultaneously support multiple air interfaces on one frequency and is particularly focusing on the 900MHz GSM band, which many European nations are allowing to be reused for newer technologies, especially for rural coverage. Its Multi-carrier Transceiver (MC-TRX) radio module can be used to upgrade base stations, continuing to support 900MHz or 1.8GHz GSM, and add support for HSPA or LTE as required, or when the regulator permits.
An SDR solution can be leveraged for:
- Redefining the base station from one radio technology to another
- Deploying multiple radio technologies in one base station simultaneously
- To target GSM refarming, and its radio (BBU) swaps for technology upgrade paths
- CAPEX would be saved as there will be no need to acquire new sites
This is a silent revolution that is taking place among the Chipset manufacturers, Infrastructure Vendors and operators that will have far reaching consequences for adaptation of efficient technologies and help re-use the spectrum.
SDR Ecosystem
ZTE was one of the first vendors to launch a SDR base station that can be upgraded to LTE through a baseband add-on and a software upgrade. Several other vendors have followed and are now launching – or have already launched – SDR base stations. The form of SDR implementation in base stations varies and each vendor may have chosen a different level of commitment for software reconfigurability. ZTE and Huawei are the only vendors that support dual mode GSM/UMTS operation in their base stations, ZTE having released the platform first. However, dual mode SDR deployments have been limited to date and are now slowly entering the market.
M2M – Machine-to-Machine
M2M or Machine-to-machine communications is the next biggest boom for the wireless operators. There are now more than five billion connections worldwide. In many regions, penetration exceeds 100%, where there is more than one connection per person in the country, and for operators to get more net adds and to grow they have to look towards this segment. One of my first experiences was deploying SCADA devices in the Gulf of Mexico on Oil Platforms which sent readings to the control centers via GPRS/EDGE networks. But things have changed from then to now, where Air Interface has become more robust and the ‘data pipe’ has become fatter and more self sustaining. And On-Star devices on vehicles have become standard, for driver safety and tracking.
M2M has been around for a while but the cost, performance breakthroughs have come closer to reality, and the standards have been formalized. With a mobile voice market close to saturation in the all over the world, many operators are searching for new sources of revenue.
Key Elements of M2M Architecture
M2M Devices
- A device capable of replying to requests for data contained within those devices or capable of transmitting data contained within those devices autonomously.
M2M Area Network
- Provides connectivity between M2M Devices and M2M Gateways. Examples of M2M Area Networks include: Personal Area Network technologies such as IEEE 802.15, SRD, UWB, Zigbee, Bluetooth, etc
or local networks such as PLC, M-BUS, Wireless M-BUS.
M2M Gateways
- Use M2M Capabilities to ensure M2M Devices inter working and interconnection to the communications network.
M2M Communications Networks
- Communications between the M2M Gateway(s) and M2M application (server). Can be further broken down into Access, Transport and Core networks. Examples include (but are not limited to): xDSL, PLC, satellite, LTE, GERAN, UTRAN, eUTRAN, W-LAN and WiMAX.
M2M Applications (Server)
- Contains the middleware layer where data goes through various application services and is used by the specific business-processing engines. A software agent or process by which the data can be analyzed, reported, and acted upon.
All standards organizations led by ETSI are working towards developing common architecture for M2M, as Multitude of technical solutions and dispersed standardization activities result in the slow development of the M2M ecosystem.
Game changers
The leaders in M2M communications in the US market have been the traditionally the GERAN carriers – T-Mobile and AT&T, but Clearwire too has been playing the catching up game with WiMAX nationwide deployments. And Verizon and Sprint are also working with vendors for device certification and building middleware platforms for M2M services with platform vendors like Jasper Wireless & Sierra Wireless to integrate server and access-network resources. This space shall also be leveraged by the utility power and water companies along with healthcare monitoring service providers. KPN (KPN) a Dutch carrier is using CDMA450 for M2M and has embraced the technology as it pushes heavily into the machine-to-machine space.
Overall all these trends shall make wireless services a part of life, just like how we cannot imagine living without a cell phone in this connected world, so will these three trends influence the way of life in the next decade.
